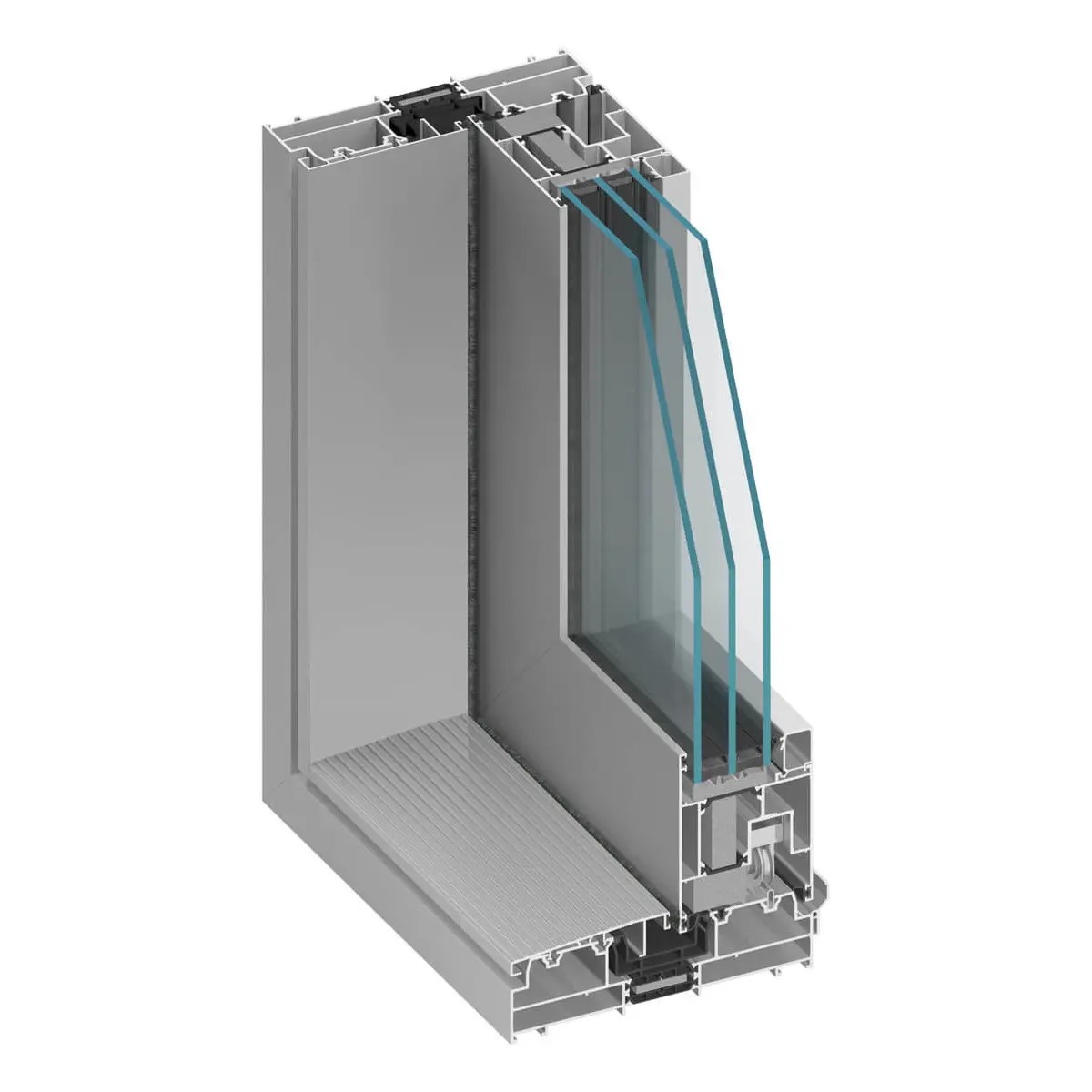

SBW MB-77HS

Geometry system

  • Frame depth: 174mm (2-rail); 271mm (3-rail)
  • Sash depth: 77 mm
  •  Dim. Max. Door: W 3300mm / H 3200mm
  •  Max weight sash: 600 kg

Thermal performance

  • UF ≥ 1.4 W/m2K
  • UW ≥ 0.88 W/m2K
max

Maximum Glass Thickness

  • 58.5 mm

Acoustic Performance

  • 38 dB

Interested in our products?

Description

The MB-77HS numbers among SBW ’s top systems in terms of performance and meets all the requirements for its product group. In terms of thermal insulation, it has two different variants: the ST and the HI. The profiles used in this product make it possible to fabricate exclusive, large-scale
doors with double or triple glazing units, while the materials and technical solutions used help to achieve a high degree of thermal and noise protection. Thanks to its specifications, the MB-77HS system is ideal for single-family houses, comfortable apartments and hotels. The MB-77HSB was developed to meet the needs of the Belgian market.

The slender

The slender, durable profile makes it possible to build a low-threshold door with a leaf weight of up to 600 kg, a height of up to 3.2 m, and a width of up to 3.3 m.

The frames

2.The frames are available in two variants: twin-track and triple-track.

 Single- or double-glazed uA wide range of infills, includingnits, along with thermal breaks and a selection of accessories and insulating inserts, makes it possible to achieve excellent thermal and acoustic parameters.

The closed shape of the glazing beads and the anti-tamper details make it possible to obtain increased burglary resistant properties without changing the fundamental construction elements of the door.

The glazing beads come in three versions: Standard (rectangular), Prestige (rounded), and Style (diamond-shaped).

The profiles are designed to allow a great many of the manual and automatic locking devices available on the market to be installed.
  • One of the most sought-after lift-and-slide systems in the SBW range, recognised for its dependable performance and high build quality

  • Advanced thermal insulation that helps improve overall energy efficiency

  • Low, barrier-free threshold designed for greater comfort—ideal for families with young children, elderly residents, and people with limited mobility

  • Optional automation for smooth and convenient operation

  • Capability to create impressive structures exceeding 3 metres in height, with added safety provided by the Comfort Close mechanism

  • Wide choice of colours and finishes to complement different architectural styles and personal preferences

  • Greater design freedom with the ability to incorporate large-scale glazed openings

  • Expansive glass panels maximise natural daylight within interior spaces

  • Slim, low threshold ensures a seamless transition between indoor and outdoor areas, improving usability and spatial flow

  • Corner opening configuration available for distinctive and contemporary architectural designs

  • A well-established system with strong demand in the market

  • Broad selection of hardware options to support a variety of configurations

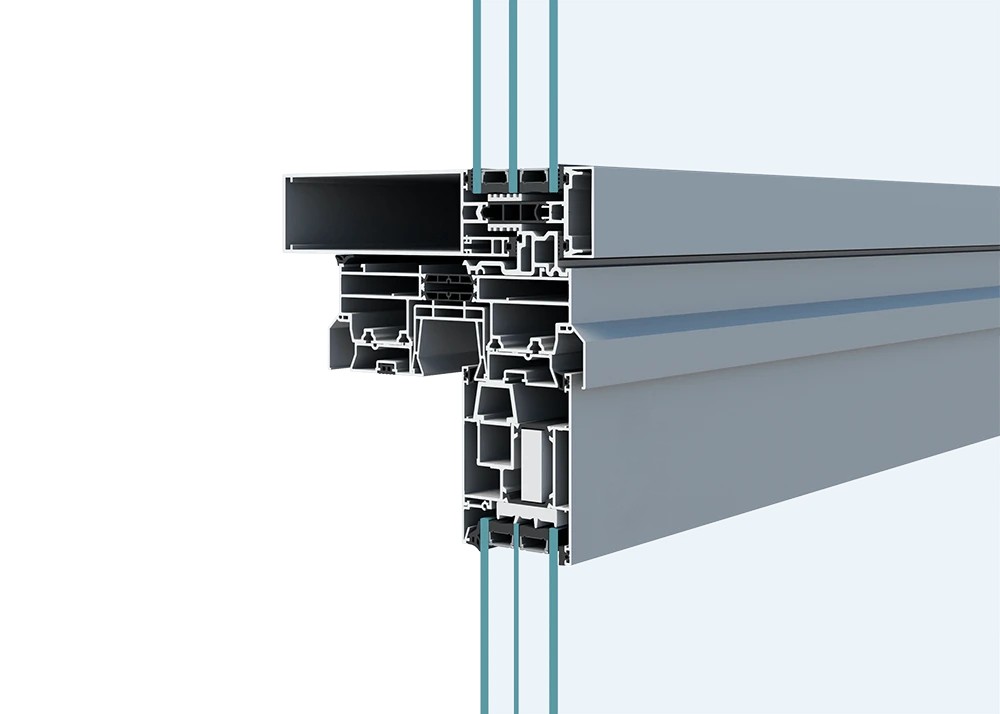

  • Adjustable top frame with a compensation profile to maintain smooth operation even if structural slab deflection occurs

  • Three glazing bead designs available: Standard (rectangular), Prestige (rounded), and Style (contoured)

  • High level of weather tightness supporting improved energy performance

  • Fully compatible with other SBW systems, including the MB-86 system.

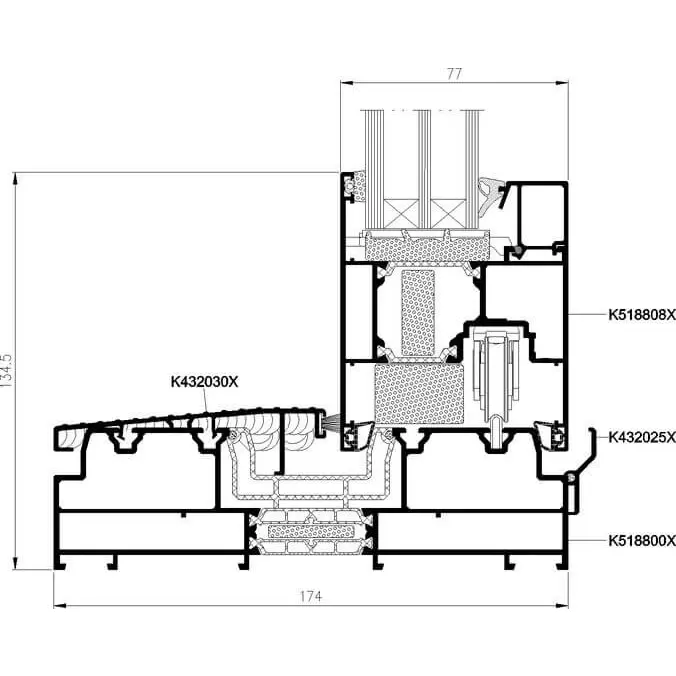

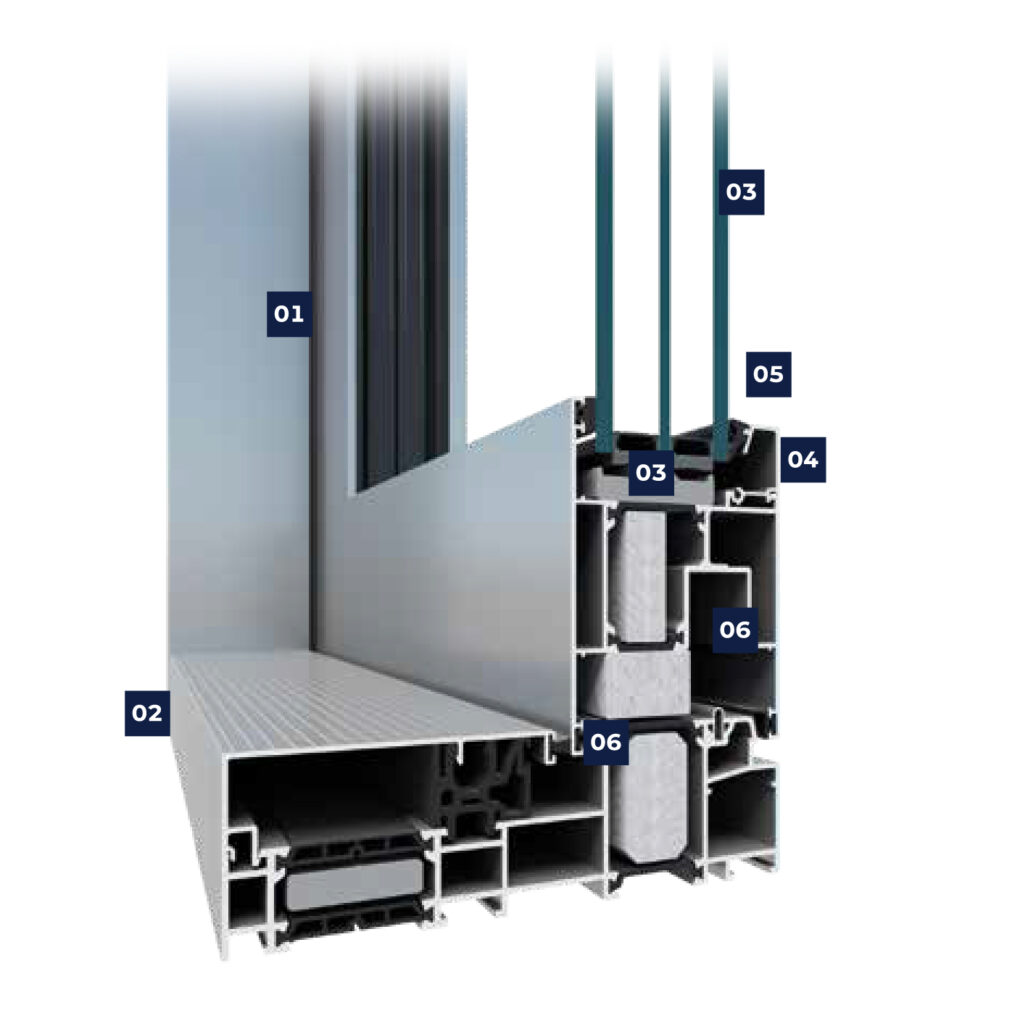

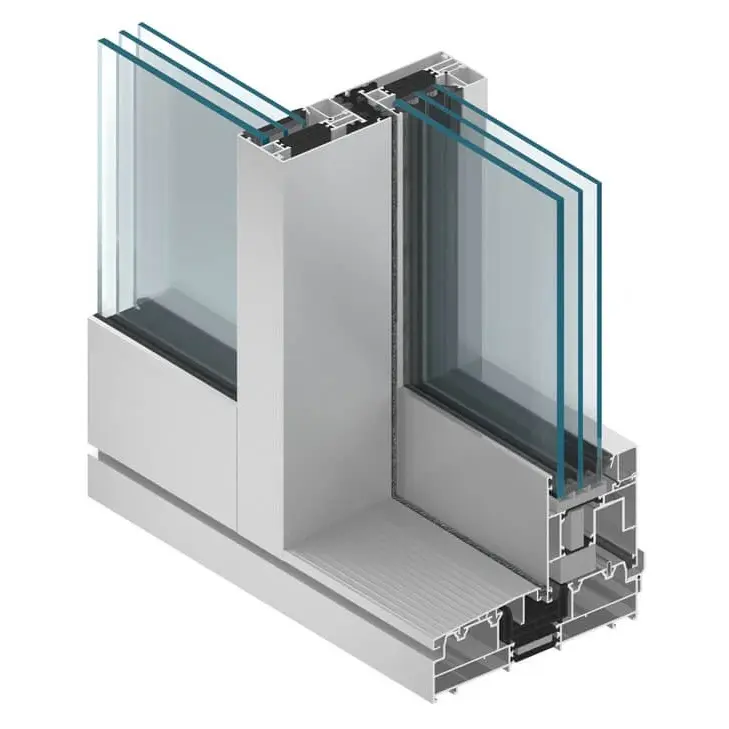

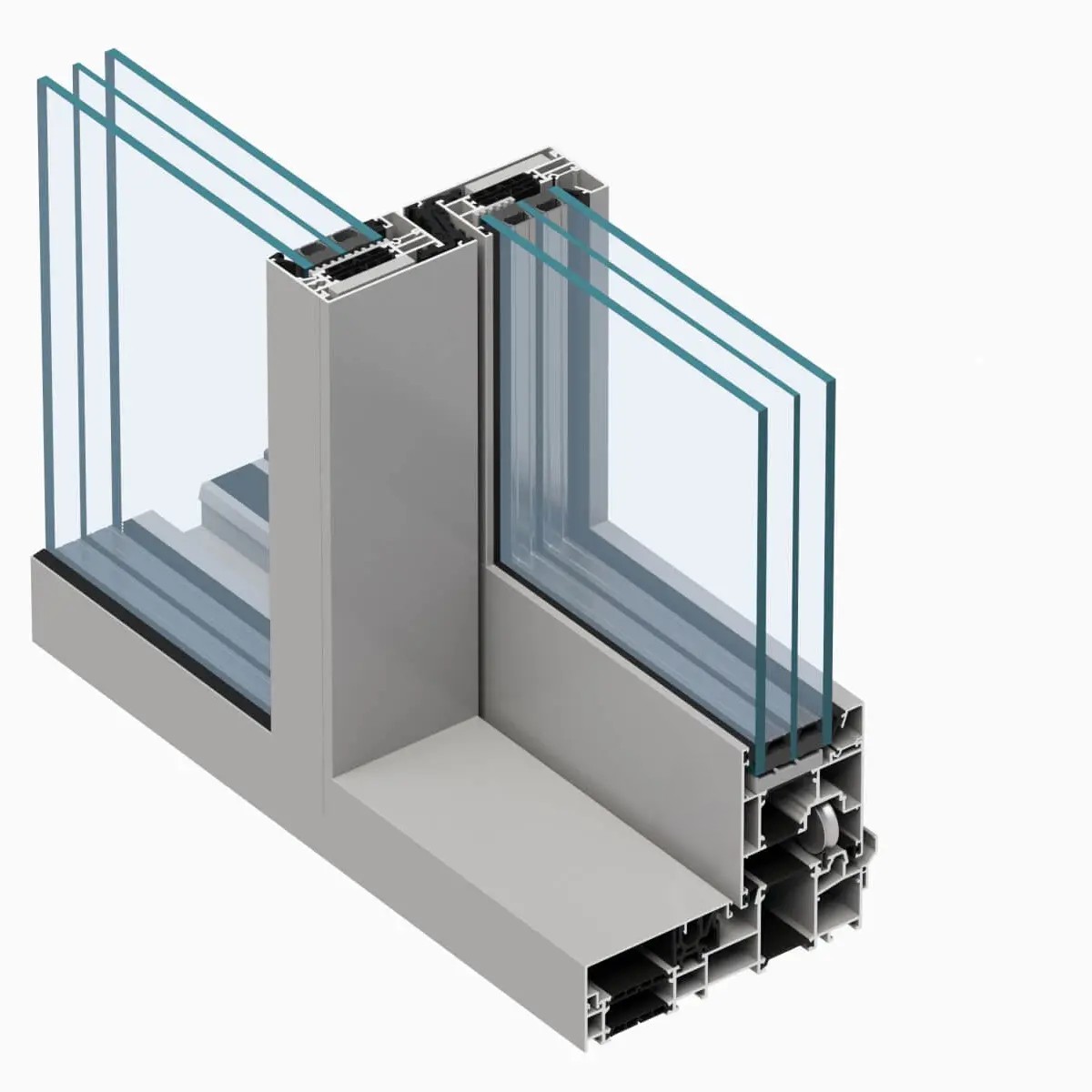

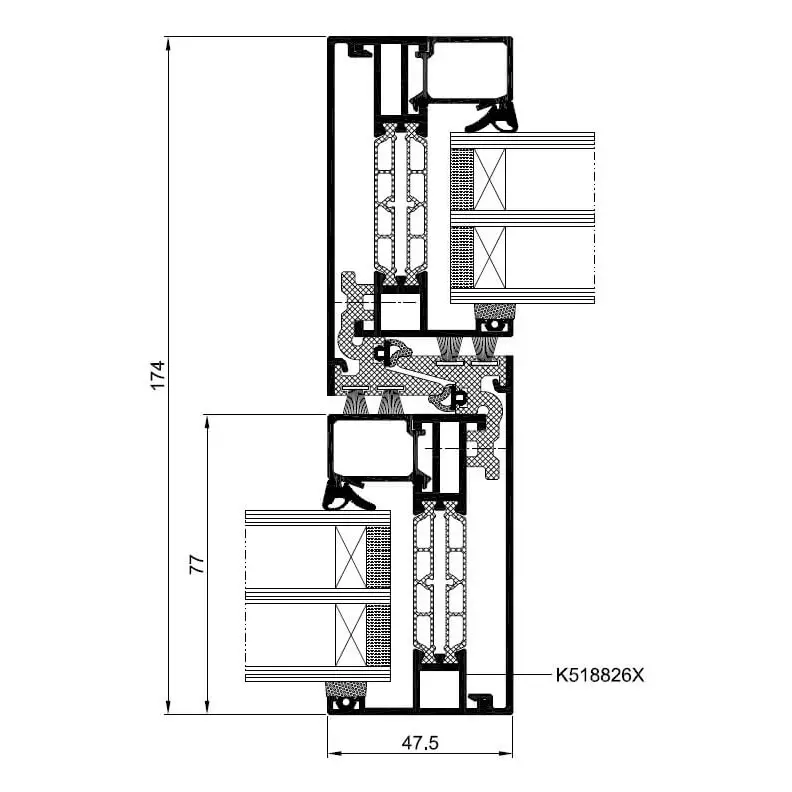

Cross-Section

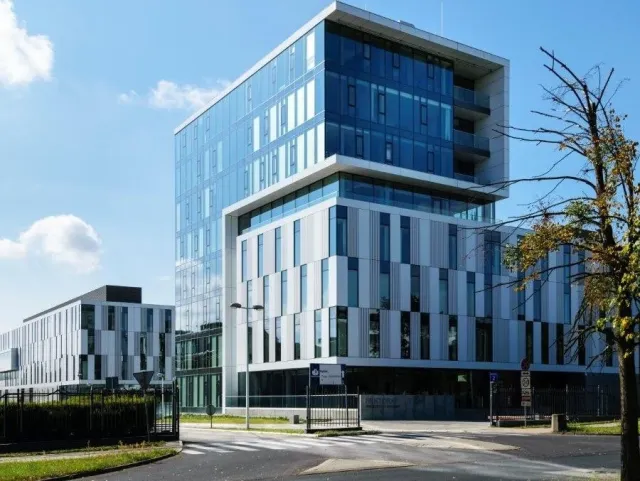

Gallery

Video

PERFORMANCE

  • Air permeability class 4, EN 12207
  • Watertightness class 9A, EN 12208
  • Wind load resistance up to class C4, EN 12210
  • Thermal insulation Uf from 1.4 W/(m2K), UW from 0.84 W/(m2K)*Performances:

FUNCTIONS AND AESTETHICS

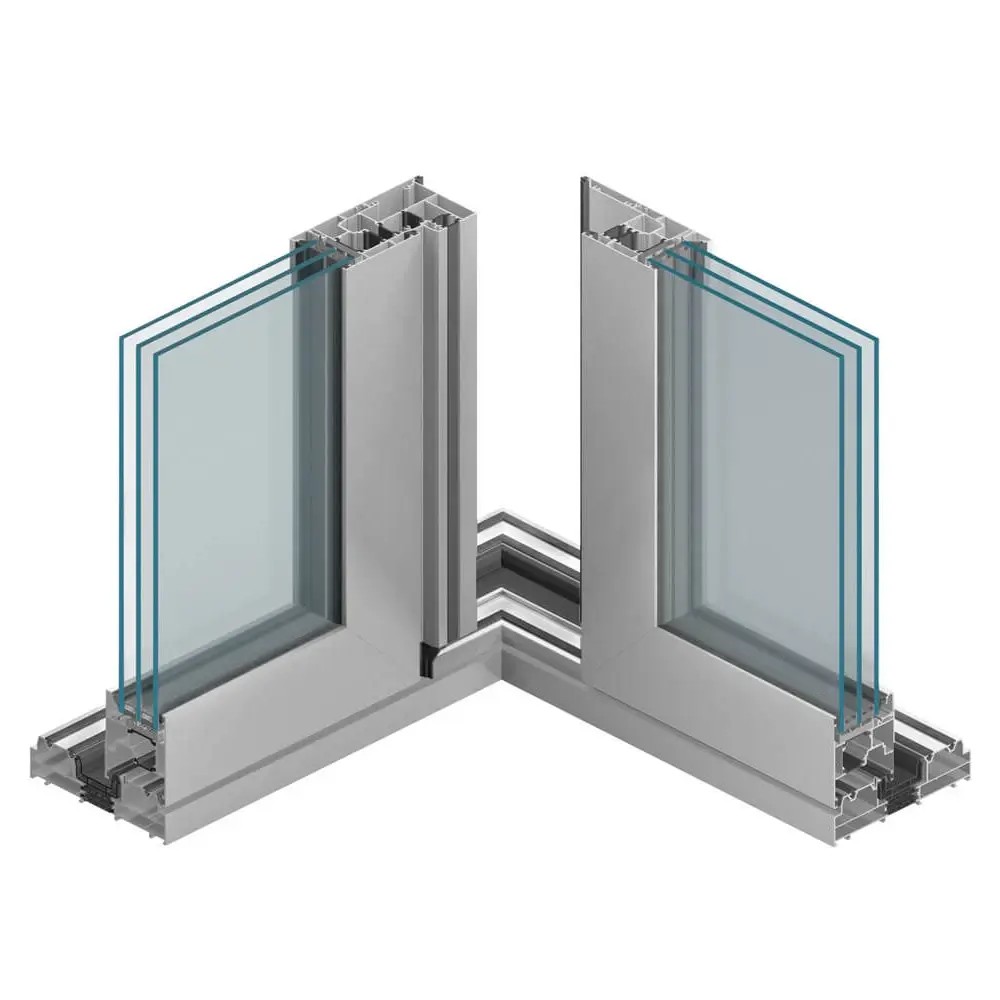

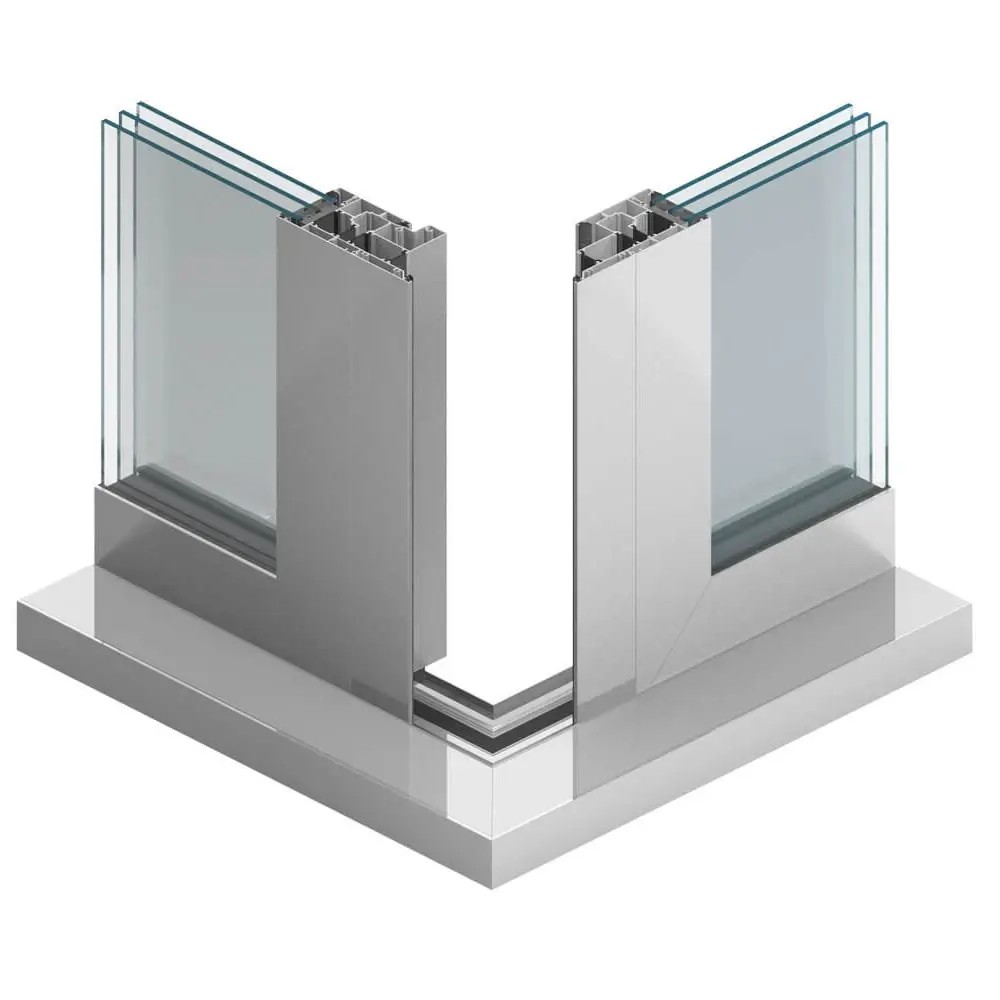

  • 90° and 270° corners can be built, creating an exceptionally large space once the door is open.
  • Convenient solutions featuring a low threshold.
  • The tailored shapes of the stop seals and glazing gaskets, together with the appropriate hardware, ensure high air- and watertightness.
  • The MB-77HS features a high level of compatibility with ALUPROF’s MB-86 system. This means that the door can be aesthetically combined with windows and some of the parts can be used interchangeably for their production.
  • The wide range of colours allows the door to be used freely in the composition of any interior or exterior décor.
  • The MB-77HSB system holds a Technical Approval (ATG) certificate issued by the Belgian Union for Technical Approval in Construction (BUtgb/UBAtc).
  • Manual or automatic opening and closing.
  • The drives and control units are concealed in the frame profiles.
  • An automatic unit mounted on the outside of the construction can be used.
