SBW ARTEVO

Geometry system

80mm
3 rows of seal
7 constructive chambers

Thermal performance

UF ≥ 0,14 W/m2K

Maximum Glass Thickness

up to 56mm

Acoustic Performance

Up to 48db

Interested in our products?

Description

SBW ARTEVO Short Description

The SBW ARTEVO window system delivers cutting-edge performance, combining superior thermal insulation, structural stability, and modern aesthetics. Its innovative RAU-FIPRO profile allows for expansive openings without metal reinforcements, while Low-E inserts and advanced sealing technology ensure energy efficiency and comfort. Designed for sustainability and flexibility, ARTEVO is ideal for modern, energy-conscious construction projects.

Key Aspects of SBW ARTEVO

Exceptional Stability
- RAU-FIPRO profile supports openings up to 2.8 m (9.2 ft) without metal reinforcements.
Advanced Insulation
- RAU-FLECT Low-E inserts enhance thermal performance, aiding Passive House compliance.
Triple Glazing Capability
- Supports up to 56 mm glazing for superior energy efficiency and noise reduction.
High-Performance Seals
- Co-extruded glazing and compression seals protect against heat loss, air infiltration, and water penetration.
Optimized Frame Design
- Seven chambers in an 80 mm frame provide outstanding thermal, acoustic, and water insulation.
Expansive Daylight Openings
- Slim 117 mm frame and sash height maximize natural light for a brighter interior.
Enhanced Security
- Multiple locking points and integrated reinforcement zones ensure safety and structural integrity.
Eco-Friendly Production
- Sustainable materials and reduced SKUs support environmentally conscious building practices.

SBW ARTEVO combines cutting-edge technology with sustainability, making it a standout choice for modern living.

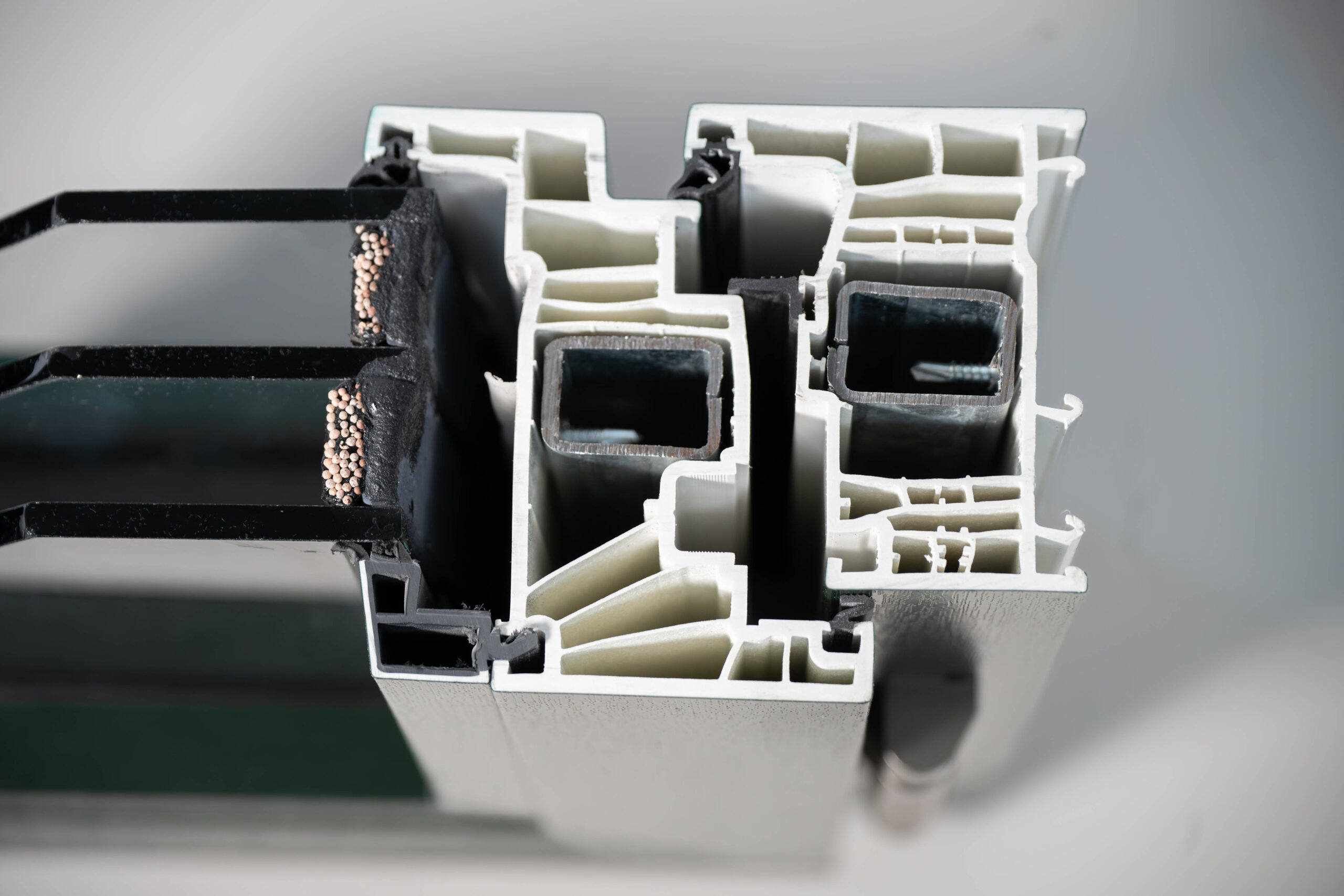

Cross Section

TECHNICAL DATA AND PERFORMANCE

Profile made of: RAU-FIPRO (fiber-reinforced uPVC)
Thermal insulation coefficient: Uf as low as 0.14 W/m²K (optimized); standard Uf up to 1.0 W/m²K
Noise insulation: Up to 48 dB (Class 4+)
Anti-intrusion protection: RC2 (WK2), with the possibility of RC3 when reinforced
Profile thickness: 80 mm
Visible profile width: 117 mm (frame and sash combined)
Number of chambers: 7 chambers
Chamber wall thickness: ~3 mm
Seals: 3 rows of co-extruded seals
Hardware: Compatible with Roto or equivalent systems; hinges can be concealed or visible
Glazing units (min/max, mm): 24 – 56 mm
Suitable for: Passive House projects, thermal rehabilitation, modernization, and new construction
Extended range of colours: Available through KALEIDO COLOR options, including foil laminates, paint, and aluminum cladding

Innovation in full force

The SBW ARTEVO system offers a wide range of color options, including classic white and nearly all shades from the RAL palette.

This flexibility allows for seamless integration into any architectural style, ensuring both aesthetic variety and durability
