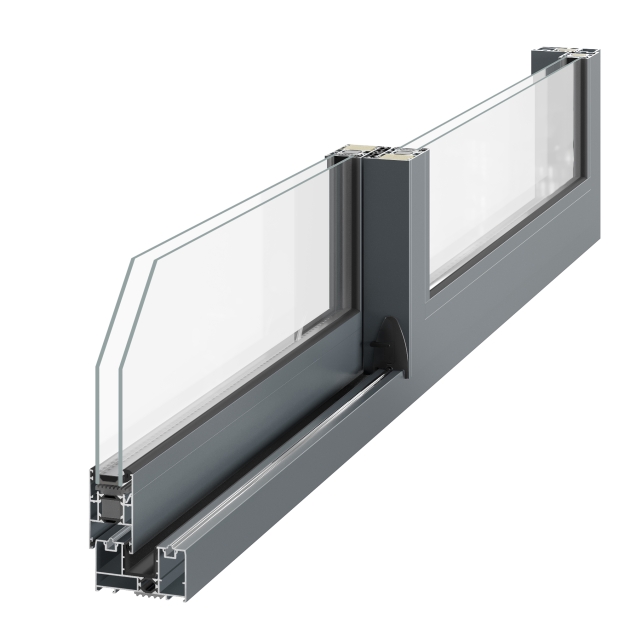

BSC 94 HI - ALUK

Description

Modern, versatile and customisable, the BSC94 HI Inline sliding door combines high performance with contemporary design.

Delivering a dependable aluminium door solution suitable for a wide range of architectural applications, this versatile, multi-configuration system is manufactured to the highest UK standards. It achieves a DSER ‘C’ rating with double glazing and offers slim sightlines from just 45mm, creating a clean, modern appearance.

Alongside dual colour options, the system is available in an extensive selection of colours and anodised finishes to suit any design requirement. The BSC94 HI is also engineered with an anti-bimetal low lambda strip, allowing for different material expansion rates while maintaining the integrity of the interlock for long-lasting performance.

Flush Innovation

Design Features

Features

Accepts 20mm – 31mm double glazing
Maximum panel weight of up to 400kg
Certified under the Secured by Design scheme
Tested to PAS 24 standards
Anti-bimetal low lambda strip to accommodate varying expansion rates

Options

Slim sightline of 45mm available
Multiple sliding configurations
Double track options available
Available in single and dual colour, with anodised finishes also offered
Wide range of hardware and security features available

Cross-Section

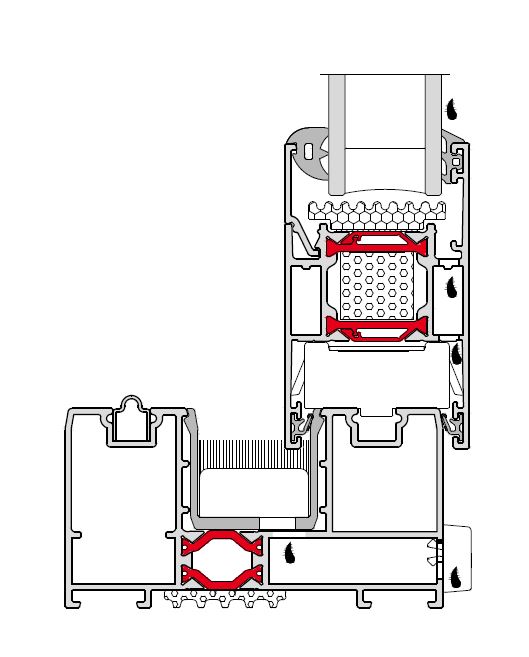

BSC94 HI Double Track Cill

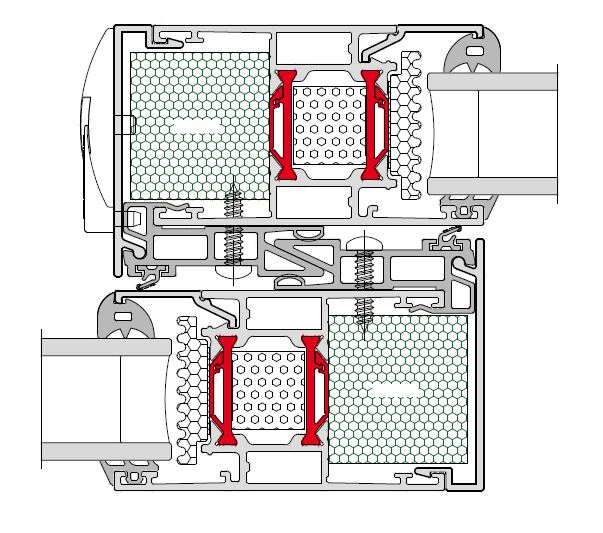

BSC94 HI Double Track Standard Interlock

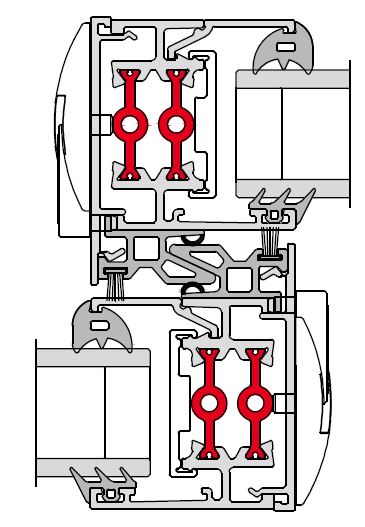

BSC94 HI Double Track Standard Slimline Interlock

Performances
U value W/m²K (Double glazing) (Mono rail) :	1.6 W/m²K	–
U value W/m²K (Triple glazing) (Mono rail) :	1.5 W/m²K	–
U value W/m²K (Double glazing) (Duo rail) :	1.7 W/m²K	1.7 W/m²K
Air permeability :	Class 3 (600 Pa)	Class 3 (600 Pa)
Water resistance :	Class 6a (250 Pa)	Class 6a (250 Pa)
Security PAS 24 :	PAS 24 & SBD	✅
Size limits
Max Vent Weight :	400kg	400kg
Max Frame Height :	3000mm	3000mm
Sightline (Head) :	15.5mm	115.5mm
Sightline (Cill) :	115.5mm	115.5mm
Sightline (Jamb) :	115.5mm	115.5mm
Max sash width (mm) :	2000mm	2000mm
Features
Dual color option :	✅
Multi-point locking :	✅
Glazing options :	Internal
Glazing thickness :	20mm-31mm

Performances

U value W/m²K (Double glazing) (Mono rail) :

1.6 W/m²K

–

U value W/m²K (Triple glazing) (Mono rail) :

1.5 W/m²K

–

U value W/m²K (Double glazing) (Duo rail) :

1.7 W/m²K

Air permeability :

Class 3 (600 Pa)

Water resistance :

Class 6a (250 Pa)

Security PAS 24 :

PAS 24 & SBD

✅

Size limits

Max Vent Weight :

400kg

Max Frame Height :

3000mm

Sightline (Head) :

15.5mm

115.5mm

Sightline (Cill) :

115.5mm

Sightline (Jamb) :

115.5mm

Max sash width (mm) :

2000mm

Features

Dual color option :

✅

Multi-point locking :

✅

Glazing options :

Internal

Glazing thickness :

20mm-31mm

Performances
U value W/m²K (Double glazing) (Mono rail) :	1.6 W/m²K	–
U value W/m²K (Triple glazing) (Mono rail) :	1.5 W/m²K	–
U value W/m²K (Double glazing) (Duo rail) :	1.7 W/m²K	1.7 W/m²K
Air permeability :	Class 3 (600 Pa)	Class 3 (600 Pa)
Water resistance :	Class 6a (250 Pa)	Class 6a (250 Pa)
Security PAS 24 :	PAS 24 & SBD	✅
Size limits
Max Vent Weight :	400kg	400kg
Max Frame Height :	3000mm	3000mm
Sightline (Head) :	15.5mm	115.5mm
Sightline (Cill) :	115.5mm	115.5mm
Sightline (Jamb) :	115.5mm	115.5mm
Max sash width (mm) :	2000mm	2000mm
Features
Dual color option :	✅
Multi-point locking :	✅
Glazing options :	Internal
Glazing thickness :	20mm-31mm

Performances

U value W/m²K (Double glazing) (Mono rail) :

1.6 W/m²K

–

U value W/m²K (Triple glazing) (Mono rail) :

1.5 W/m²K

–

U value W/m²K (Double glazing) (Duo rail) :

1.7 W/m²K

Air permeability :

Class 3 (600 Pa)

Water resistance :

Class 6a (250 Pa)

Security PAS 24 :

PAS 24 & SBD

✅

Size limits

Max Vent Weight :

400kg

Max Frame Height :

3000mm

Sightline (Head) :

15.5mm

115.5mm

Sightline (Cill) :

115.5mm

Sightline (Jamb) :

115.5mm

Max sash width (mm) :

2000mm

Features

Dual color option :

✅

Multi-point locking :

✅

Glazing options :

Internal

Glazing thickness :

20mm-31mm
