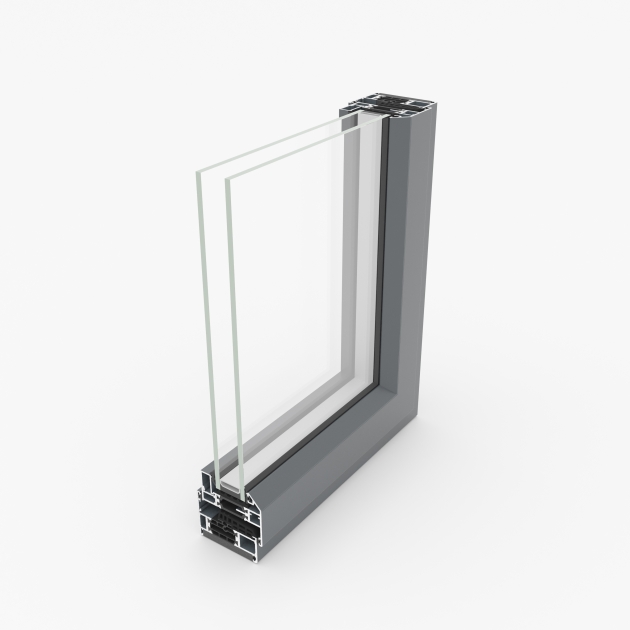

58BW ST HI – Steel Replacement
Geometry system
- Depth: 58 & 70mm
- Side hung max. weight: 24kg
- Top hung max. weight: 40kg
- Fixed light max weight: 200kg
Thermal performance
- Uw (double glazing) 1.4W/m2K
- Uw (triple glazing) 1.2 W/m2K
Maximum Glass Thickness
- 24mm-32mm
Acoustic Performance
Interested in our products?
- Request an offer now!
Description
Flush Innovation
- 58mm or 70mm frame depth to accommodate varying types of applications
- Internally or externally glazed
- Glazing 24mm – 32mm**
- Available for Lifetime Homes (LFT)
- Available in a range of single or dual colour and anodised finishes
- Available in the following aesthetics: Putty Line, Stepped Edge, Square, Exterior Glazed Chamfer
- Available in the following configurations: top hung, bottom hung, side hung, fixed light, and multilight.
** Glazing thickness: Other thicknesses may be possible dependant on profile combinations specified. Fabricators should refer to AluK technical manual glazing section for details.
- Glazing options from 24mm to 40mm
- Available in a wide range of single or dual colour and anodised finishes
- Choice of aesthetics: Bay, Contemporary, and Square
- Configurations include tilt-before-turn, side-hung, fixed light, and multi-light options
- Suitable for Lifetime Homes (LTH) requirements

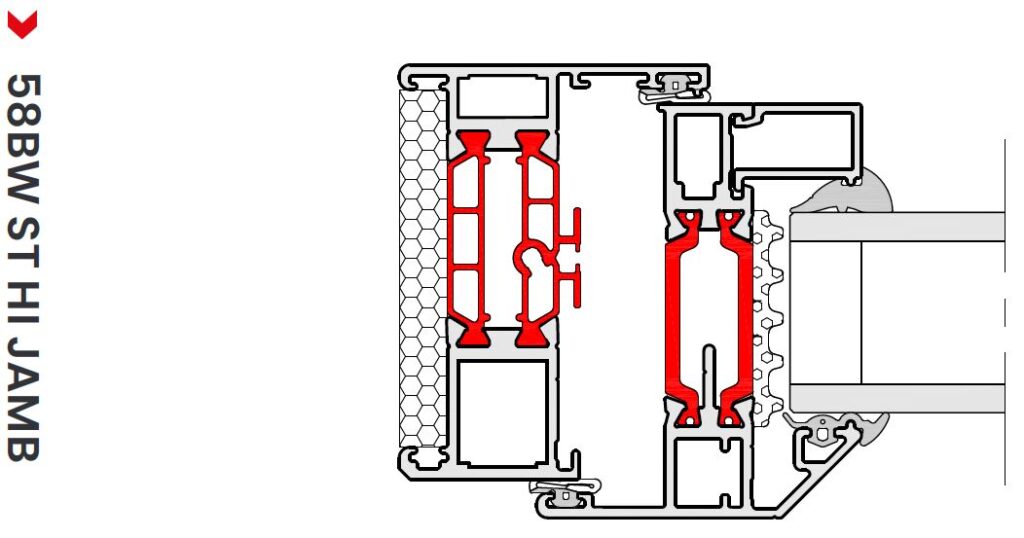

Cross-Section
TECHNICAL DATA:
| Performances | |
|---|---|
| U value W/m²K (Double glazing) : | 1.4 W/m²K |
| U value W/m²K (Triple glazing) : | 1.1 W/m²K |
| Window energy rating : | A – B |
| BRE Green Guide rating : | A rated |
| Air tightness (Pa) : | Class 4 (600pa) |
| Water tightness (Pa) : | Class E1500 (1500pa) |
| Security PAS 24 : | ✅ |
| Certifications : | ✅ |
| Secured by design : | ✅ |
| Configurations | |
| Opening : | open out |
| Top hung : | ✅ |
| Side hung : | ✅ |
| Bottom hung : | ✅ |
| Fixed Light : | ✅ |
| Multi light : | ✅ |
| Size limits | |
| Top hung (max weight) : | 40kg |
| Side hung (max weight) : | 24kg |
| Bottom hung (max weight) : | 45kg |
| Fixed light (max weight) : | 250kg |
| Features | |
| Frame depth : | 58mm & 70mm |
| Dual color option : | ✅ |
| Multi-point locking : | ✅ |
| Glazing options : | Internal & External |
| Glazing thickness : | 24mm-32mm |
| Sightline (Frame to Vent) : | 66mm |
| Sightline (Vent to Mullion) : | 81mm |
| Sightline (Fixed Light) : | 43mm |
