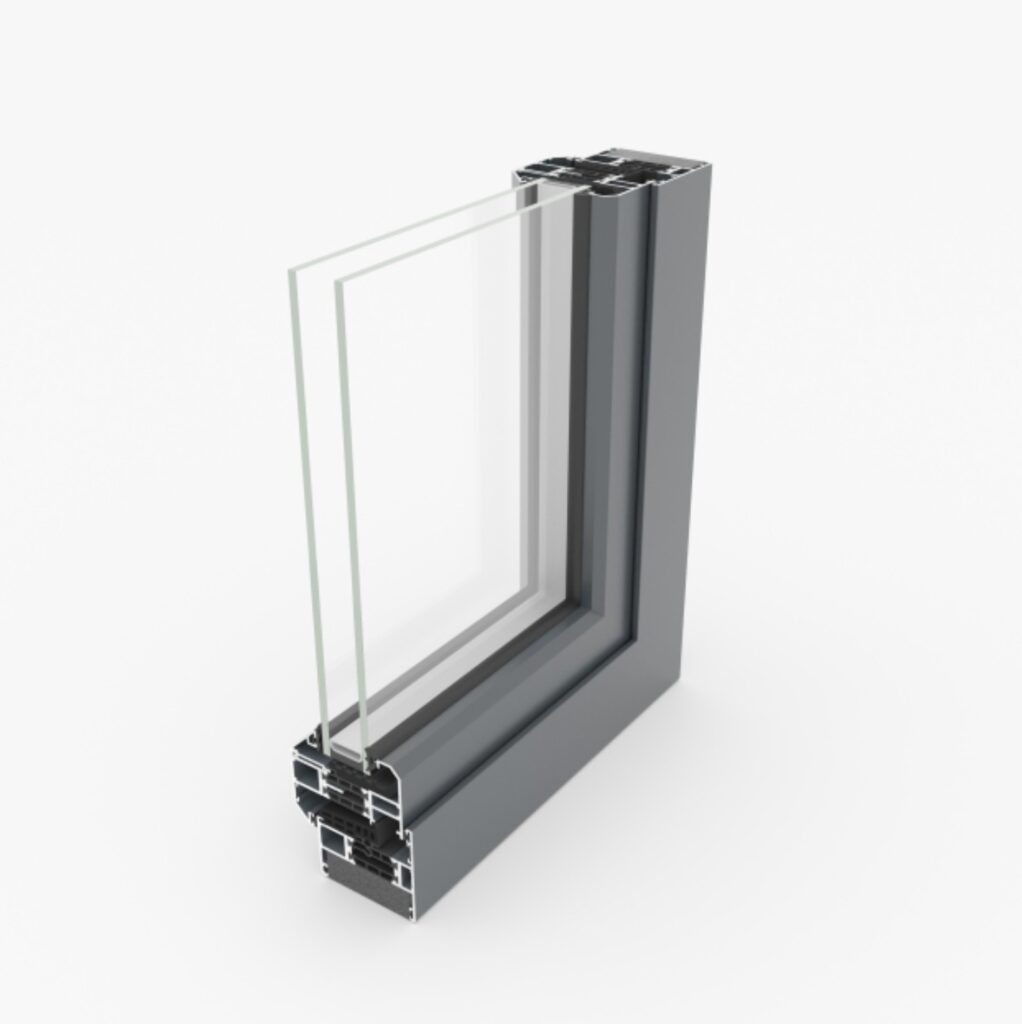

58BW CASEMENT HI – ALUK
Geometry system
- Depth: 58 & 70mm
- Top hung (max weight) : 180kg
- Side hung (max weight) : 55kg
- Bottom hung (max weight) : 45kg
- Fixed light (max weight) : 250kg
Thermal performance
- Uw (double glazing) 1.4W/m2K
- Uw (triple glazing) 1.2 W/m2K
Maximum Glass Thickness
- 24mm-40mm
Acoustic Performance
42 dB
Interested in our products?
- Request an offer now!
Description

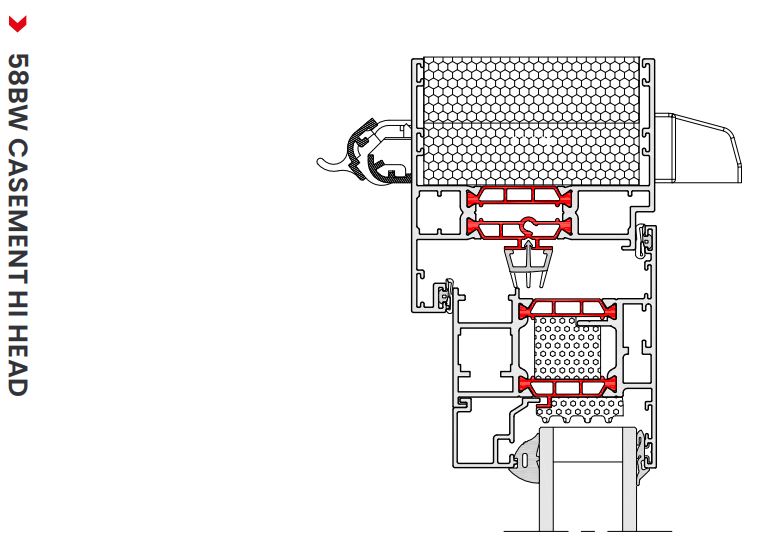

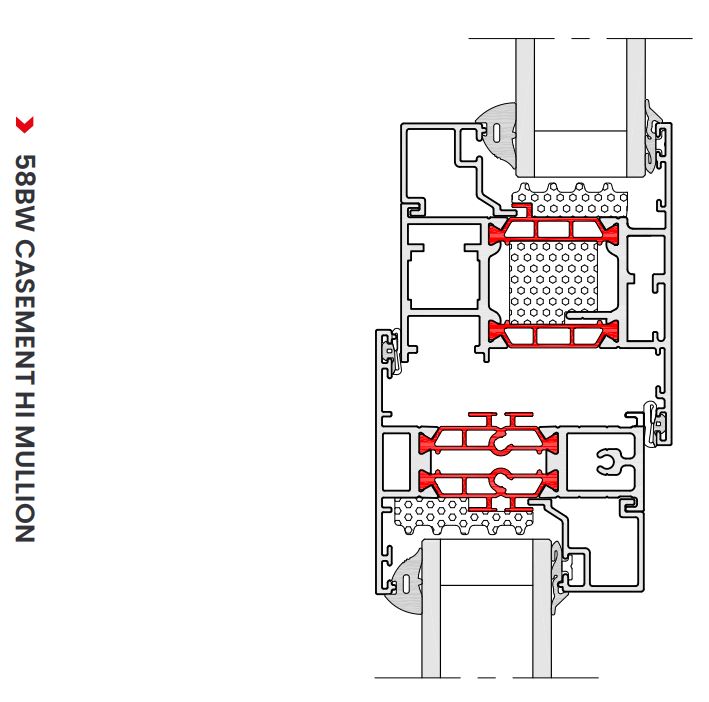

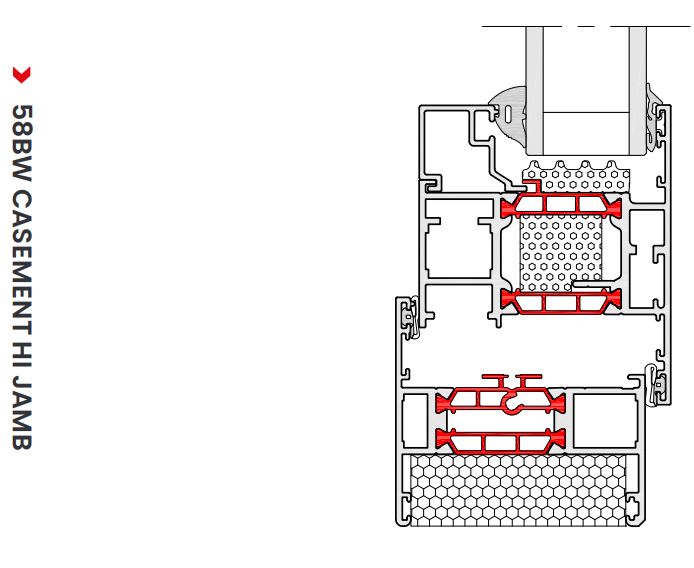

Cross-Section
TECHNICAL DATA:
| Performances | |
|---|---|
| U value W/m²K (Double glazing) : | 1.4 W/m²K |
| U value W/m²K (Triple glazing) : | 1.2 W/m²K |
| Window energy rating : | B – C |
| BRE Green Guide rating : | A rated |
| Air tightness (Pa) : | Class 4 (600pa) |
| Water tightness (Pa) : | Class 9A (600pa) |
| Wind load (Pa) : | Class E2400 (2400pa) |
| Security PAS 24 : | ✅ |
| Certifications : | ✅ |
Configurations | |
| Opening : | outward opening |
| Top hung : | ✅ |
| Side hung : | ✅ |
| Bottom hung : | ✅ |
| Fixed Light : | ✅ |
| Multi light : | ✅ |
| french casement : | ✅ |
| Size limits | |
| Top hung (max weight) : | 180kg |
| Side hung (max weight) : | 55kg |
| Bottom hung (max weight) : | 45kg |
| Fixed light (max weight) : | 250kg |
Features | |
| Frame depth : | 58mm & 70mm |
| Dual color option : | ✅ |
| Multi-point locking : | ✅ |
| Glazing thickness : | 24mm-40mm |
| Sightline (Frame to Vent) : | 75mm |
| Sightline (Vent to Mullion) : | 89mm |
| Sightline (Fixed Light) : | 43mm |
